Description
Product Overview

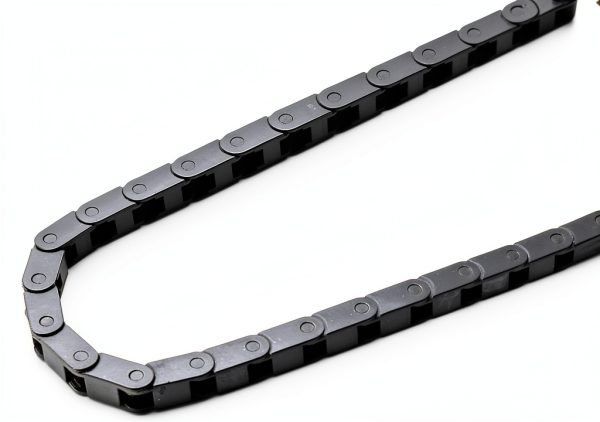

The FlexiChain Nylon Drag Chain is a purpose‑built cable carrier designed for high‑speed CNC machinery where precise, uninterrupted cable movement is critical. Constructed from reinforced nylon, each link offers a balance of flexibility and strength, allowing the chain to bend smoothly around tight radii while resisting wear from abrasive particles and continuous motion. The open‑center design provides easy access for cable insertion, inspection, and replacement, reducing maintenance time and minimizing machine downtime. With a load capacity of up to 12 kg per meter, the chain can support multiple power and data cables, ensuring reliable performance in demanding industrial environments. Its lightweight construction also helps to keep the overall moving mass low, contributing to faster acceleration and deceleration of the machine’s moving axes.

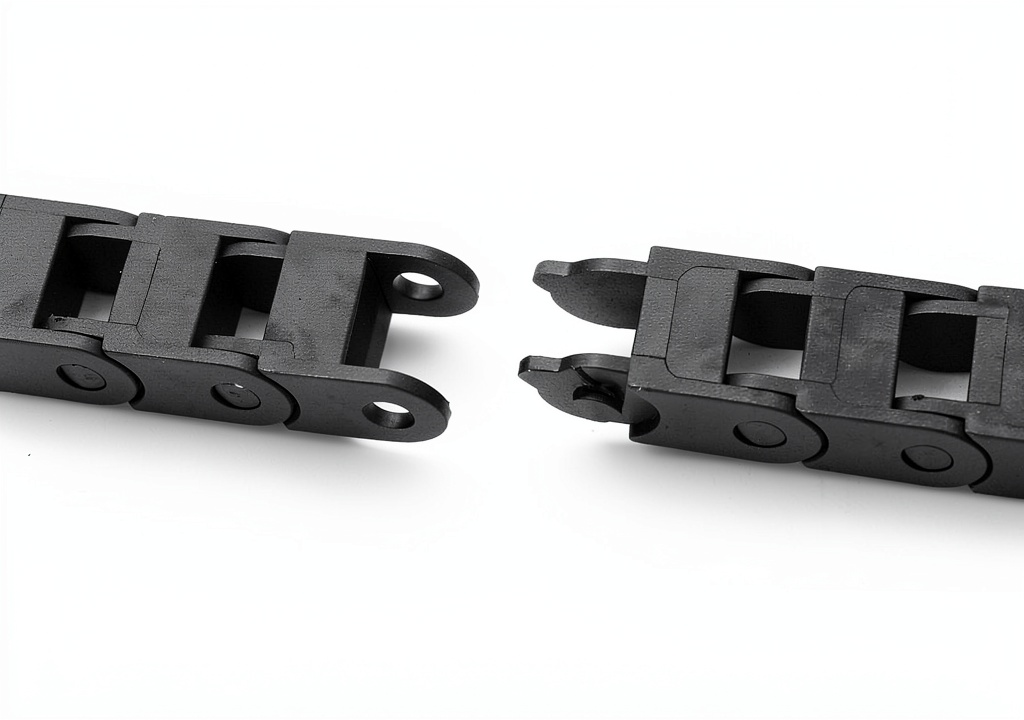

Designed with a modular link system, the drag chain can be easily cut to length and re‑assembled using standard connectors, allowing customization to fit a wide range of machine footprints. The chain’s UV‑resistant coating protects it from sunlight and harsh chemicals often encountered in factory floors, extending service life and maintaining flexibility over time. Compatibility with standard IEC‑60320 and IEC‑60204 cable standards ensures that the chain can accommodate a variety of wire gauges and connector types without compromising bend radius or cable integrity. Additionally, the chain’s low‑noise operation helps to reduce acoustic emissions in precision machining environments, contributing to a quieter workplace.
All FlexiChain drag chains are manufactured in accordance with international safety and quality standards, including ISO 9001 and IEC 60204‑1, ensuring they meet the rigorous demands of modern automation equipment. The extrusion process is tightly controlled to achieve uniform wall thickness, which translates to consistent flexural performance across the entire length of the chain. Each batch undergoes dimensional inspection using laser measurement systems, guaranteeing that link spacing and pivot angles remain within tolerance limits. This level of precision reduces the risk of cable pinching and guarantees smooth operation even when the chain is subjected to repeated bending cycles over thousands of hours of service.
Usage
The FlexiChain Nylon Drag Chain is ideally suited for CNC routers, milling machines, and 3‑axis or 5‑axis robotic arms where rapid positioning of tools requires synchronized cable movement. In these applications, the drag chain guides power, signal, and coolant lines along the moving axis, preventing entanglement and wear that could lead to unexpected shutdowns. Its high‑speed capability allows the machine to achieve acceleration rates of up to 30 m/s² without compromising cable integrity, making it a reliable choice for high‑throughput production lines. Operators benefit from the chain’s easy installation, which can be performed without specialized tools, reducing setup time and allowing quick reconfiguration when changing workpieces or tooling. The chain’s flexibility also accommodates complex motion paths, ensuring that cables follow the exact trajectory of the moving components without excessive strain, which is essential for maintaining signal quality and prolonging equipment lifespan.
In environments where temperature fluctuations are common, such as metal‑working shops or outdoor CNC installations, the nylon material retains its mechanical properties across a range of –20 °C to +80 °C. This thermal stability prevents the chain from becoming brittle in cold conditions or softening under heat, ensuring consistent performance throughout the operating cycle. The drag chain also resists oil, coolant, and dust ingress thanks to its sealed link design, which helps to maintain smooth motion and reduces the frequency of cleaning or part replacement. For applications involving robotic pick‑and‑place arms, the chain’s lightweight nature minimizes inertia, allowing faster response times and more precise positioning.
Customers in the electronics manufacturing sector also benefit from the FlexiChain Nylon Drag Chain when integrating automated test equipment that moves along linear rails. The chain’s low‑noise characteristic ensures that sensitive measurement instruments are not disturbed by acoustic interference, while its smooth glide reduces vibration transmission to delicate components. By keeping cables neatly organized, the chain simplifies troubleshooting and reduces the risk of accidental cable damage during routine adjustments. Whether deployed in a high‑volume production line or a prototype development bench, the drag chain adapts to varying speeds and load requirements, making it a versatile solution for diverse automation projects. The chain’s easy‑to‑clean surface prevents buildup of debris, allowing quick wipe‑down with standard solvents, which is essential for maintaining hygiene standards in cleanroom environments. Its modular links can be re‑configured to accommodate different cable bundles, giving engineers the flexibility to upgrade or modify system wiring as technology evolves. Overall, the chain provides a reliable backbone for moving cable assemblies across a wide range of industrial applications.
The drag chain’s modularity also simplifies scaling of production lines. When expanding a workstation, additional chain sections can be spliced using our patented quick‑connect couplers, eliminating the need for custom fabrication. This modular approach supports rapid reconfiguration of cable routes as new equipment is added or existing machines are upgraded. Moreover, the chain’s resistance to oil and coolant splashes means that it can be positioned close to machining zones without risk of degradation, preserving the integrity of high‑value data and power cables. By maintaining a clean and organized cable path, the system reduces the likelihood of accidental snags that could cause costly downtime. The chain’s design also accommodates future upgrades, such as adding shielding for electromagnetic interference protection, ensuring that the cable management solution remains viable as technology advances. Overall, the flexibility and durability of the drag chain contribute to higher equipment uptime and smoother workflow integration across diverse manufacturing scenarios.
Why Choose Us
FlexiChain stands behind every product with a commitment to engineering excellence and rigorous quality control. Each nylon drag chain undergoes a multi‑stage testing process that includes tensile strength verification, wear resistance assessment, and dynamic fatigue analysis to ensure it meets or exceeds industry standards such as ISO 12100 and IEC 60204. Our manufacturing facilities employ precision extrusion and molding techniques that guarantee uniform link dimensions and consistent material properties across every batch, delivering a product you can trust for long‑term operation.
Customer support is a cornerstone of the FlexiChain experience. Our technical assistance team is available 24/7 to help you select the appropriate chain length, gauge capacity, and installation method for your specific application. We provide detailed CAD drawings, mounting diagrams, and step‑by‑step guides that simplify the integration process, ensuring that even complex setups can be completed efficiently. Should any issue arise, our rapid‑response warranty service offers replacement parts within 48 hours, minimizing production interruptions.
FlexiChain’s drag chains are engineered not only for performance but also for ease of maintenance. The open‑center design allows technicians to quickly inspect cable condition without dismantling the entire chain, saving valuable service time. Additionally, the chain’s modular links can be replaced individually, meaning that only the worn sections need to be swapped out, reducing material costs and environmental impact. This thoughtful engineering, combined with our proactive support, ensures that your CNC equipment remains operational and efficient throughout its lifecycle.
Our continuous improvement program leverages data analytics from field installations to identify performance trends and potential failure modes. By analyzing metrics such as wear rate, temperature rise, and vibration signatures, we can proactively refine material formulations and link geometry for future releases. This data‑driven approach not only enhances product reliability but also provides our customers with actionable insights to optimize their own maintenance schedules. In addition, we collaborate with OEMs to develop custom‑size chains and specialized link configurations, ensuring that even the most unique machine designs receive a perfectly matched cable management solution. Our engineering team also offers virtual simulation services, allowing you to preview chain behavior under various motion profiles before physical installation, further reducing risk and ensuring optimal performance. Through this comprehensive support ecosystem, FlexiChain delivers not just a product, but a partnership that drives efficiency and reliability across your manufacturing operations.
Key Features
- Reinforced nylon links provide high tensile strength while remaining lightweight, enabling fast acceleration of CNC axes without adding excess inertia. This ensures reliable cable guidance even under rapid directional changes.
- Open‑center design allows easy cable insertion, inspection, and replacement, reducing maintenance time and minimizing machine downtime. The accessible layout also facilitates quick troubleshooting and supports a variety of wire gauges and connector types.
- UV‑resistant coating protects the chain from sunlight and chemical exposure, extending service life in harsh industrial environments. This durability ensures consistent performance over years of continuous operation, reducing the need for frequent replacements.
- Low‑noise operation minimizes acoustic emissions, creating a quieter workspace and preventing interference with sensitive measurement equipment. The silent performance is especially beneficial in precision machining settings where sound control is critical.
- Comprehensive after‑sales support includes 24/7 technical assistance, rapid warranty replacements, and detailed installation documentation, ensuring confidence and long‑term reliability for your operations. Our team also offers training and on‑site service to maximize uptime and performance.
FAQ
What size chain should I choose for my CNC machine?
Choose a chain length that matches the travel distance of your machine’s moving axis, adding a small safety margin for flexibility. Our sizing guide provides recommended link counts based on axis length and cable bundle diameter, ensuring optimal bend radius and load capacity.
Can the nylon drag chain be used with fiber‑optic cables?
Yes, the chain’s gentle curvature and rounded link edges protect delicate fiber‑optic cables from abrasion and micro‑bending, preserving signal integrity while allowing high‑speed movement.
How do I install the drag chain on existing equipment?
Installation involves securing the chain’s end links to existing brackets using the supplied hardware, then threading cables through the open center. No special tools are required, and the modular links can be cut to length on‑site for a perfect fit.
What warranty and support options are available?
FlexiChain offers a 12‑month limited warranty covering material defects, with a rapid‑replace service that ships replacement parts within 48 hours. Our 24/7 technical support team provides troubleshooting assistance, CAD drawings, and on‑site training if needed.
Is the drag chain compatible with existing mounting brackets?
Yes, the FlexiChain nylon drag chain is designed to fit standard mounting brackets commonly used in CNC equipment. The chain’s link spacing and outer dimensions conform to IEC 60204‑1 specifications, allowing it to be secured with existing hardware without modification. For installations that require custom spacing, we offer optional adapters and brackets that can be easily attached to the chain’s end links. Our technical support team can assist in selecting the appropriate mounting solution to ensure a secure and reliable fit.
Reviews
There are no reviews yet.
